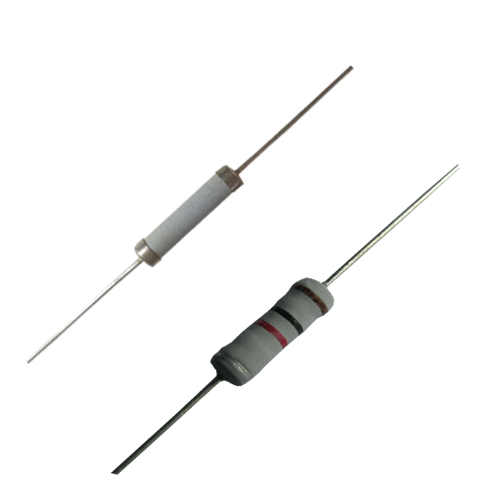

Ceramic Composition Resistors(RMC)

  • Ceramic Composition Resistors(RMC)
  • Ceramic Composition Resistors(RMC)
Ceramic Composition Resistors(RMC)Ceramic Composition Resistors(RMC)

Ceramic Composition Resistors(RMC)

  • 1. Excellent in anti-pulse characteristics
  • 2. Non-inductive resistors
  • 3. Higher reliability against disconnection
  • Product description: Ceramic Composition Resistors & Anti-pulse Resistors, Used for Radar, Semiconductor Process, Dynamic Braking, Current-limit, Snubber Circuits, Dummy Loads.
  • INQUIRY
Ceramic Composition Resistors
  1. Bulk metal ceramic resistors that consists of a clay, alumina, and ceramic filler that has been blended.
  2. Pressurized into a resistive core and then covered with a molded outer insulating core.


Replacement Carbon-Composition Resistors

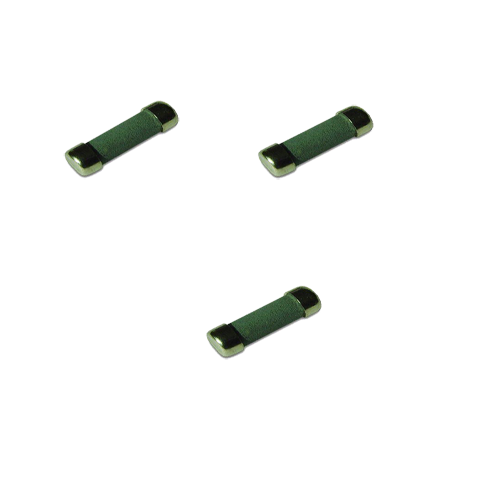

  1. Design requirements for custom sizes, surface mount, or special footprints can be met easily.
  2. In cases where several carbon-composition resistors have been used together in an array to achieve a particular rating, they have been replaced with a single bulk ceramic resistor, frequently at a lower installed cost.

Features

  1. Excellent in anti-pulse characteristics

  2. High Peak Power, Rated Wattage up to 5W, meet high energy density demands.

  3. Higher reliability against disconnection compared to wirewound resistors and film resistors

  4. Tolerance: K(±10%), M(±20%)

  5. Products with lead-free terminations meet EU RoHS requirements

  6. Non-inductive resistors


Applications


  1. Motor Drives, Broadcast Transmitters, X-Ray, Lasers, Medical Defibrillators, RF Amplifiers, Power Conditioning.
  2. Radar, Semiconductor Process, Dynamic Braking, Soft-start/Current-limit, Snubber Circuits, Dummy Loads, Energy Research.

Please downloand the specification of ceramic composition resistors for more parameters.

Download Specification
