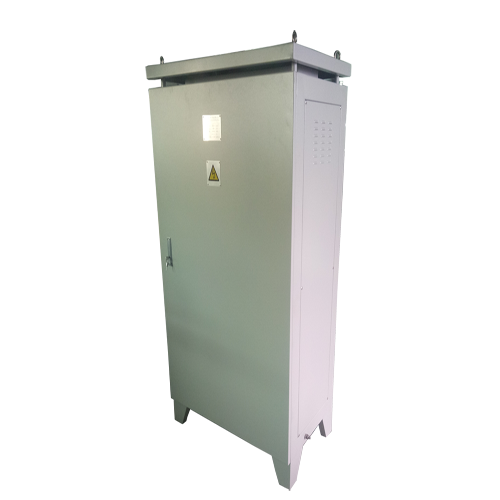

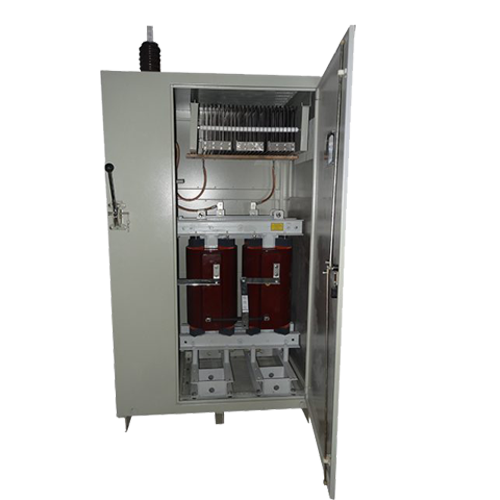

Neutral Grounding Resistor

  • Neutral Earthing Resistors(NGR)
  • Neutral Earthing Resistors(NGR)
  • Neutral Earthing Resistors(NGR)
  • Neutral Earthing Resistors(NGR)
Neutral Earthing Resistors(NGR)Neutral Earthing Resistors(NGR)Neutral Earthing Resistors(NGR)Neutral Earthing Resistors(NGR)

Neutral Earthing Resistors(NGR)

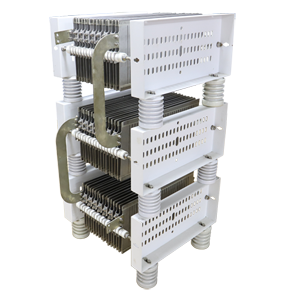

  • 1. Stainless-steel resistor elements
  • 2. Bolted resistor element connections instead of welded connections providing assemble of spare parts on site immediately
  • 3. Rugged shock-resistant construction
  • 4. High thermal capacity to absorb high currents
  • Product description: Neutral Earthing Resistors & Neutral Grounding Resistors, 24 Years Manufacturer, providing solutions within 24 hours!
  • INQUIRY

Neutral Earthing Resistors (NGR) are used to limit the fault current for safety of equipment and personnel in industrial systems.

In solid grounding, the system is directly grounded and the fault current is limited only by the soil resistance. The fault current can be very high and can damage the transformers, generators, motors, wiring and other equipments in the system. The NGR are inserted between neutral and ground in order to increase the net resistance in the event of an earth fault and limit the current to a safe level.


General Features


1.Stainless-steel resistor elements
2. Bolted resistor element connections instead of welded connections providing assemble of spare parts on site immediately
3. High thermal capacity to absorb high currents
4. High altitude ratings
5. Rugged shock-resistant construction

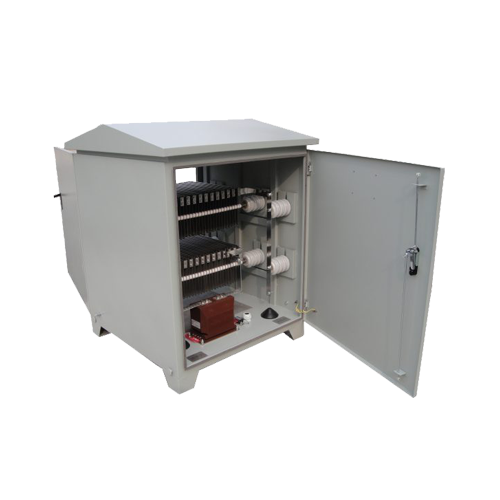

6. Solid top cover sloped to prevent water accumulation


Technical Specifications


1. Operation Voltage : Up to 110 kV line to line systems
2. Rated Current : Up to 5000 A
3. Ambient Temperature : Up to 55℃ (For higher ambient temperature, consult factory)
4. Resistance Alloy : Stainless-steel (CrNi or CrAl)
5. Different Protection Degree according to demand
