Water Cooled Resistor

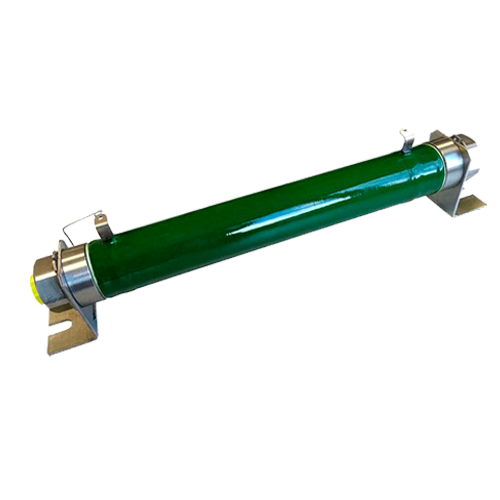

Water Cooled Wirewound Resistors(WCR)
- 1. Vitreous Wirewound on ceramic
- 2. Easy Assembly

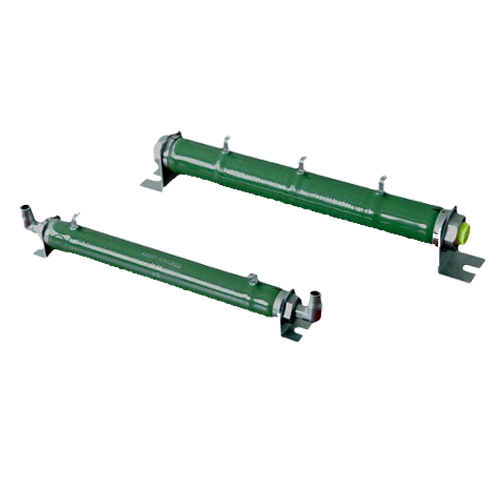

- 3. Possible configeration with 2 resistors
- Product description: Water Cooled Wirewound Resistors with direct cooling without heat sink & 1 Water Cooled Resistors = 6 wirewound resistors = 5 thick-film resistors
Water Cooled Resistors are designed for some industries which will need to use power resistors continuously, without using heat sink to ensure power resistors can work in standard enviroment temperature by using water cooling.
Features:
1. Rated Power: 200W - 1500W
2. Resistance Value: 10R - 47KR
3. Tolerance: ±5%, ±10%
4. Temperature coefficient: 100ppm/°C
5. Cooling: Water Circulation deinized with rate of glycol 0 to 40%.
6. Maximum working voltage: 3000V
Standard Electrical Specifications:
| Dimensions | Rated Power | Resistance Range | Tolerance |
| WCR 30×250 | 1500 | 10R-47KR | ±5% |
| WCR 30×250 | 2000 | 10R-47KR | ±5% |
| WCR 30×300 | 2500 | 10R-47KR | ±5% |
