Potentiometer

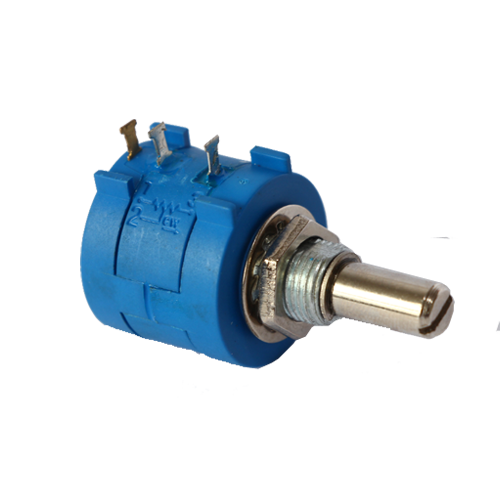

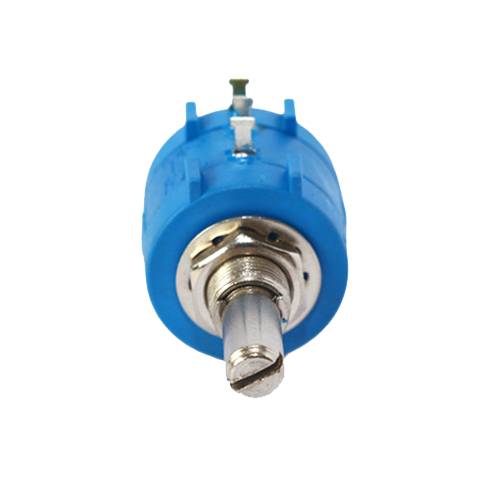

3590S Wirewound Potentiometer
- Resistance range: 100Ω-100KΩ
- Independent Linearity: 0.25%
- Rated power: 2W
- Rotational Life: 10000 cycles
- Product description: 3590S Wirewound Potentiometer with 3600° Effective Electrical Angle and Mechanical Angle
3590S Wirewound Potentiometer originates from USA, it is a multiple-turn wirewound potentiometer and is bushing mounted with AR pin function, plastic or metal shaft and bushing.
Features:
1. Mechanical Angle: 3600° ±10°
2. TCR: ±100ppm/°C
3. Working temeprature: -55°C ~ + 125°C
4. Resistance tolerance: ±5%
Applications:
1. Electrical equipment
2. Communication equipment
3. Digital products
4. Instrumenet
PDF specification download
