Potentiometer

  • single-turn wirewound potentiometer
single-turn wirewound potentiometer

single-turn wirewound potentiometer

  • Package Diameter: 22mm
  • Number of Turns:1
  • Angle of rotation:300°
  • Rotational Life (no load) Cycles: 15,000
  • Product description: WX118 single-turn wirewound potentiometer with 1W rating power and 15,000 rotational life (no load) cycles
  • INQUIRY

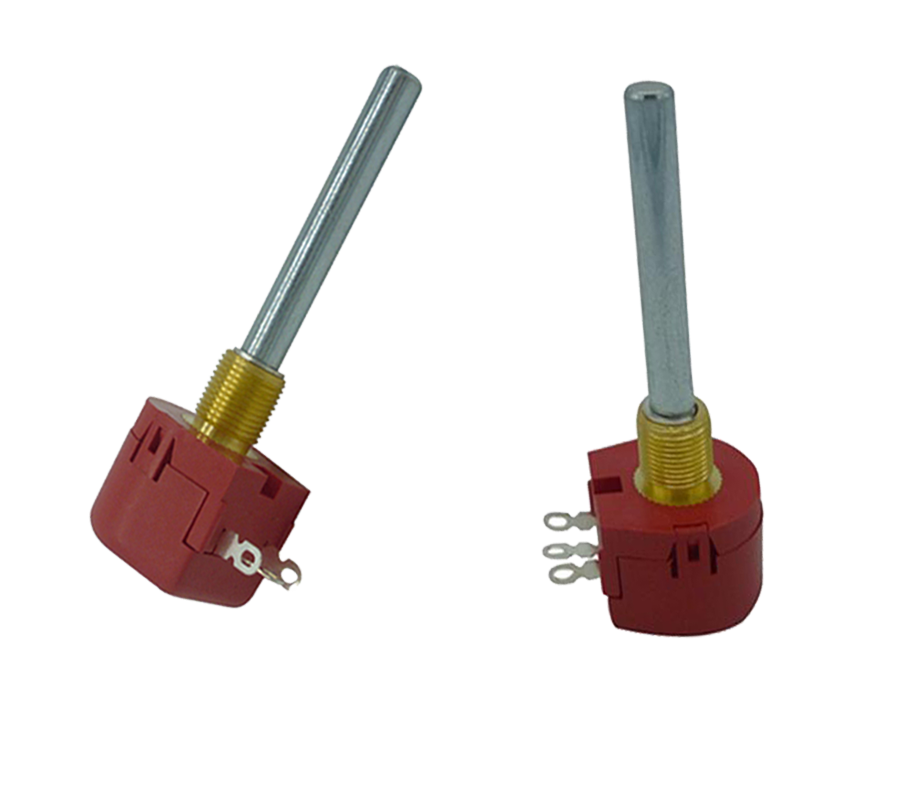

WX118 single-turn wirewound potentiometer

Model WX118
Package Diameter 22mm
 Shape “U”
Number of Turns 1
Shaft Nickel Plated Rail 25mm/50mm
IP Level IP40
Taper-Linear X
Linearity ±5%
Angle of rotation 300°
Rotational life (no load) cycles 15000
Terminal Solder Lug
 Resistance range 10Ω-22Kohm
Tolerance resistance ±5%
Rated Power 1W
Shaft Diameter 6mm
