Carbon Film Resistors
Carbon Film Resistors
- Anti-Surge ability
- Low cost
- Package: Bulk or Tape
- Product description: Carbon Film Resistors, rated power from 1/8W to 5W, low cost with wide applications!

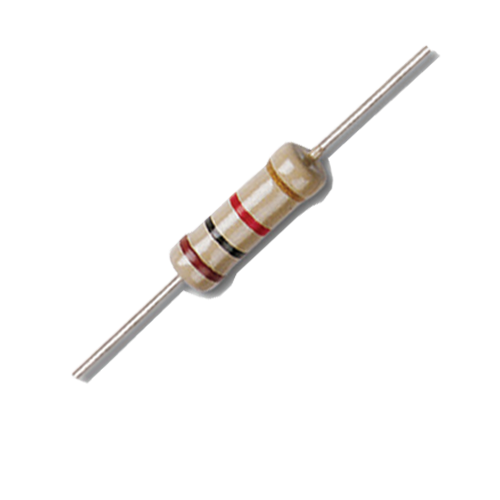

Carbon Film Resistors
Hydrocarbon is covered on ceramic body by sputtering deposition technology, and carbon resistor will need to adjust the resistance value by auto carving machine. Easy to get high resistance value, and it is suitable to use for high voltage application.
Features:
- Axial leaded type, high power at small sizes.
- Tolerance: G (±2%), J (±5%)
- Rated power: 1/8W - 5W
- Operating temperature range: -55°C~+155°C
Applications:
- Consumer Electronic, Telecommunications
- Household Appliances, Automotive, Computer, Instrumentation.

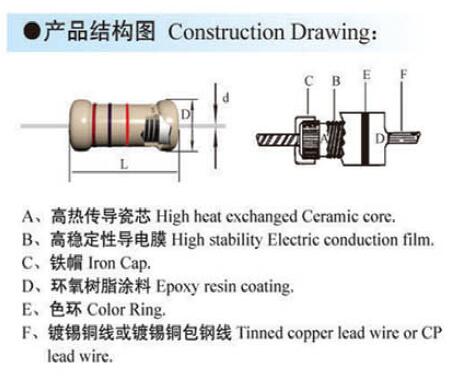

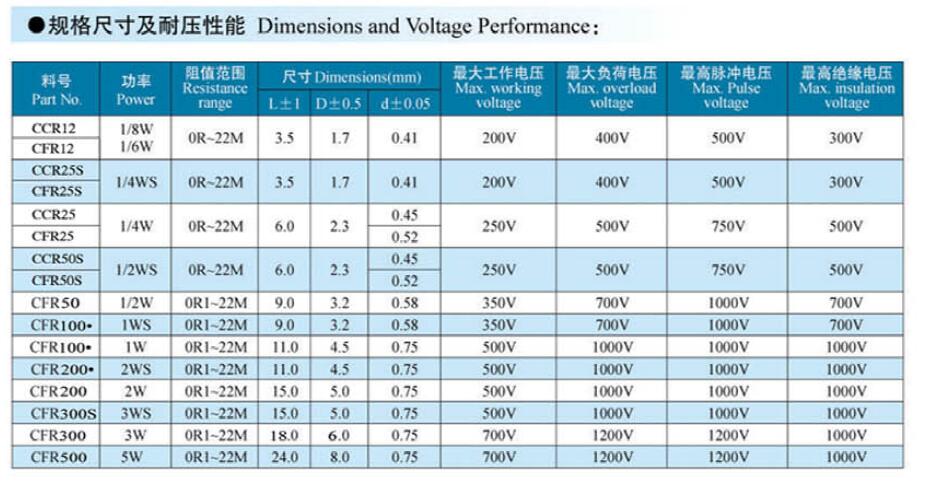

Dimensions:
Please download the PDF Specification for more details.
