Metal Glaze Film Resistor
Metal Glaze Film Resistors
- High Voltage Withstanding
- High Resistance Value
- Good Overload ability
- Small size
- Product description: Metal Glaze Film Resistors, small sizes, rated power from 1/4W to 5W, resistance value from 1k-100Mohm, max working voltage from 350V to 800V.
Metal Glaze Film Resistors

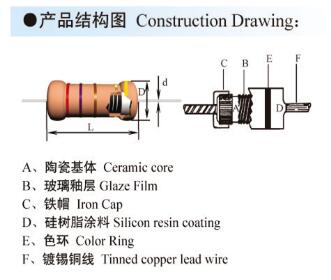

Thick film is sputterred on 85% alumina ceramic core, adjusting the value by carving machine and non-flammable coating will be covered by auto coating line. Designed for high voltage application and bad working evironment electric circuit.
Features:
- Rated power: 1/4W-5W
- Resistance value: 1Kohm - 100Mohm
- Tolerance: ±2%, ±5%
- Max working voltage: 300V-800V
Applications:
- Electric appliance
- Amplifier
- Industrial power supply
- Communication equipment
- Instrument

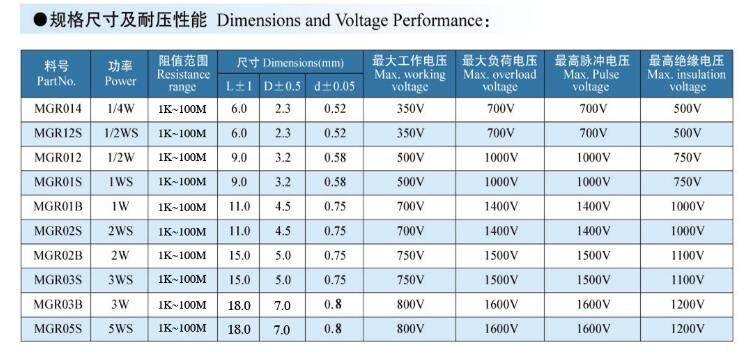

Dimesions:
Please download the PDF specification for more details.
