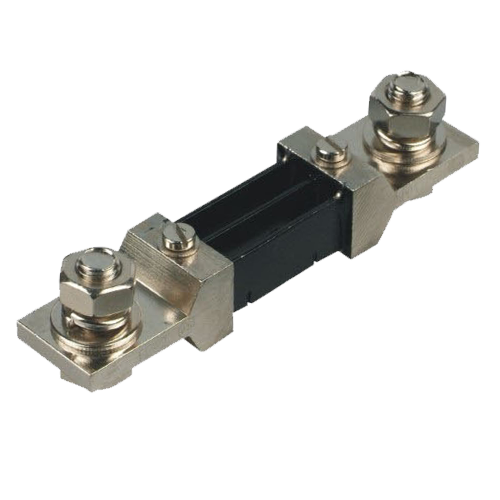

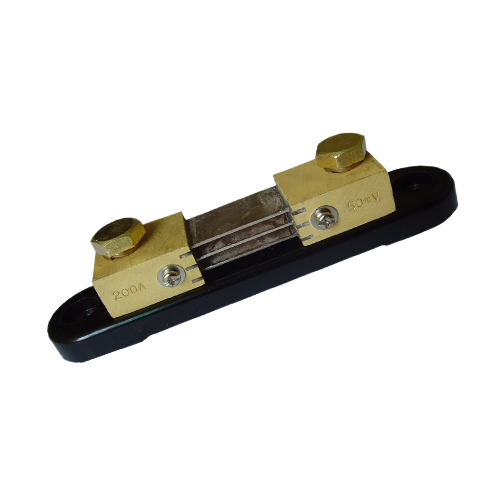

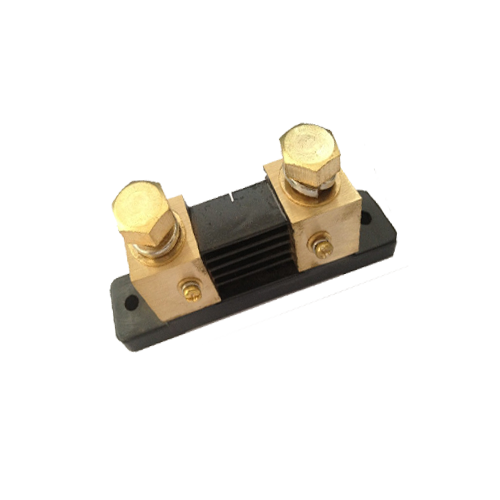

Shunt Resistors(SD)

  • 1. Rating 10A up to 10000A
  • 2. Outputs 50mV, 60mV, 75mV, 100mV, 150mV
  • 3. Accuracy class: 0.5 and 0.2
  • Product description: DC Ammeter Shunts are low resistance precision resistors used to measure AC or DC electrical currents by the voltage drop those currents create across the resistance.
  • INQUIRY

DC Ammeter SHUNTS

A range of direct current shunts which provides an accurate millivolt signal, exactly proportional to the system current. They can be used to drive ammeter indicators, overload protection and control devices. These shunts enable the measurement of D.C. current in ranges from 10A to 10000A with various output options available.


Features:

1. Accuracy class 0.5
2. Temperature Coefficient 0.1%/10°K
3. Overload withstand 1.2 rated current
4. 5 second withstand 10A - 250A = 10 x rated current
5. 250A - 2000A = 5 x rated current
6. 2000A - 10000A = 2 x rated current
7. Operating temperature -25°C to +55°C
8. Rating 10A up to 10000A
9. Outputs 50mV, 60mV, 75mV, 100mV, 150mV


Please download specification of DC Shunt for more information.
