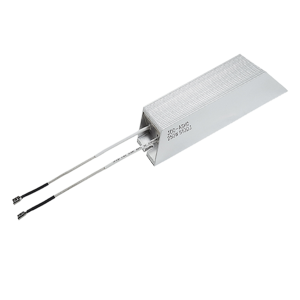

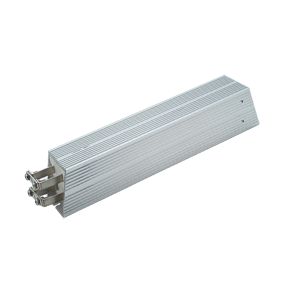

Trapezium Aluminum Housed Resistor(AHST)

  • Trapezium Aluminum Housed Braking Resistors(AHST)
  • Trapezium Aluminum Housed Braking Resistors(AHST)
Trapezium Aluminum Housed Braking Resistors(AHST)Trapezium Aluminum Housed Braking Resistors(AHST)

Trapezium Aluminum Housed Braking Resistors(AHST)

  • 1. Rated power range: 60W-2000W
  • 2. Rated resistance value:0.1R-10kR
  • 3. TCR: ≤200ppm/℃
  • 4. Tolerance: 2%, 5%, 10%
  • Product description: Braking Resistors with Aluminum Housed design. Small size with high load power and good heatsink capacity. 23 years braking resistors manufacturer in China.
  • INQUIRY

Aluminum Housed Braking Resistors are superior to the traditional porcelain frame resistor in terms of weather fastness, vibration resistance and safety.It can be easily fitted in an airtight manner and additional heat radiator can be fixed to it in an easy way. With elegant appearance, it is an ideal component that is perfectly compatible with power and electronic. Characterized by easy tight installation, easy attachment of radiator and aesthetic appearance.


Features:

1. Rated power range: 60W-2000W
2. Operating voltage range: <1.2kV
3. Rated resistance value: 1R-10kR
4. Dielectric Strength: AC3KV 50Hz/5s
5. IP Grade: IP00/IP33
6. Range of temperature excursion: ≤400ppm/℃


Applications:

Wildly used in lifting, inverter, elevators, power, ships, power supply, welding, wind power generation, aviation, military, automation equipment, solar power generation, railway systems.


PDF Specification download
