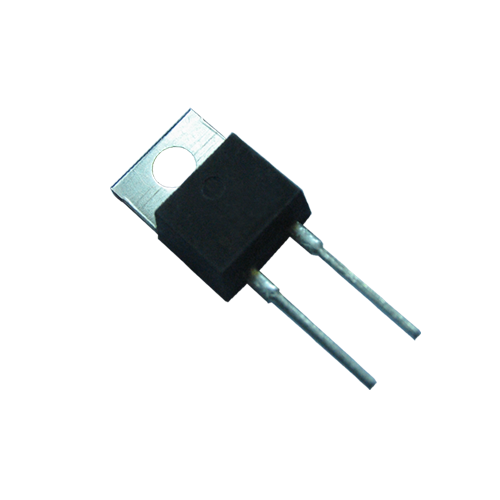

TO220 Power Thick Film Resistor
Thick Film Power Resistors
- TO-220 package: compact and easy to mount
- 35W at 25 °C heatsink mounted
- Negligible inductance
- Tolerance: ±1%, ±2%, ±5%
- Product description: TO220 Thick Film Power Resistors Temperature Coefficient: ±50 ppm/°C, ±100 ppm/°C Original Manufacturer in China FREE Samples for testing
Thick Film Power Resistors with T220 package design.
Features :
- 35 Watt at 25°C Case Temperature Heat Sink Mounted.
- Low Thermal Resistance to Heat Sink at Rth < 4.28°C/W.
- TO-220 Style Power Package, Isolated Case, Non Inductive.
- Single Screw Mounting to Heat Sink. Molded Case for Protection and Easy to Mount.
Applications :
- RF Power Amplifier, Automated Machine Controller, Voltage Regulation.
- Switching Power Supplies, UPS, Snubbers Circuits, Low Energy Pulse Loading.
