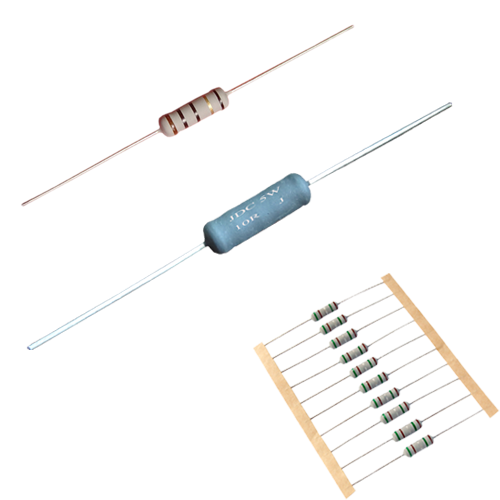

Wirewound Resistors(KNP)

Wirewound Resistors

Low TCR: ±5 PPM / °C~±300 PPM / °C
Tolerance: ± 1%, ± 2%, ± 5%
Rated Power: 1/4W~10W
Non-Inductive is avaialble
Product description: Wirewound Resistors, Ni-Cr or Copper-Nickel alloy resistance wire will be winded on high alumina ceramic core, Exellent performance for anti-surge applications.
INQUIRY

Wirewound Resistors(KNP Series)

The resistor should be assembled with two caps and leads first, then resistance alloy wire is wound on the ceramic element and welded to the caps, and flameproof silicone cement coating is covered on the element body. Two different methods for marking resistance values, letter printing(3W-10W) or color rings(1/4W-5W).

Features:

Excellent pulse load capacity
Low TCR and stable value
Good heatsink capacity
Non-inductive(KNPN)
Wide resistance range: 0.05Ω to 5KΩ

Applications:

Power Supply
Electric Tools, Welders
High voltage devices

Please download the PDF Specification for more details.
