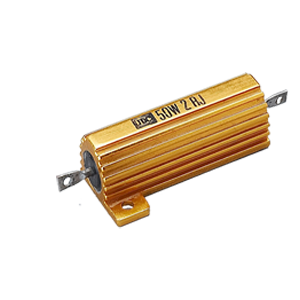

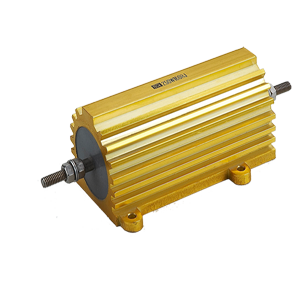

Golden Aluminum Housed Resistor(RH)

  • Aluminium Housed Power Resistors
  • Aluminium Housed Power Resistors
Aluminium Housed Power ResistorsAluminium Housed Power Resistors

Aluminium Housed Power Resistors

  • Rated power: 5W - 500 watts
  • Tolerance Options: From ±1% to ±10%
  • Maximum Voltage: 1.9kVdc
  • Dielectric Strength: 5kVac
  • Product description: Aluminium Housed Power Resistors, Small size with high power load, excellent heatsink capacity, ideal resistors for inverter, audio and elevator!
  • INQUIRY

Aluminium Housed Power Resistors have excellent heat dissipating capability by using heat sink design on aluminum case, Wirewound resistors or Film resistors will be filled in aluminium case with molded or sand instuction.


Features:

  • Rated Power: 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
  • Wide range of values from 0.05 Ω to 100 kΩ
  • Temperature coefficient of resistance: ± 10-100 ppm/°C
  • Resistance tolerance:± 1%,± 2%,± 5%
  • Operating Temperature Range: -55°C to +275°C
  • Non-inductive is available

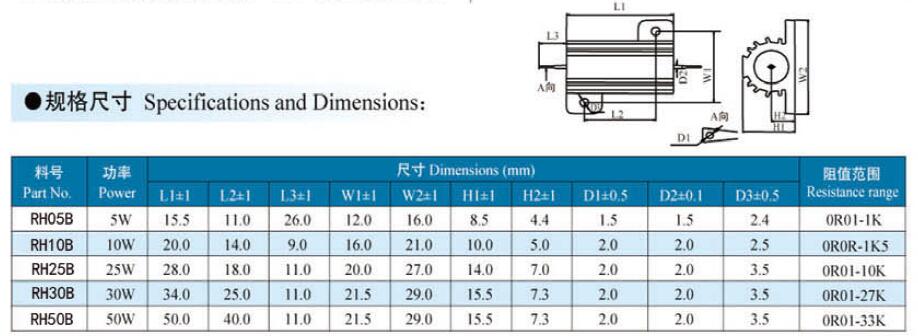

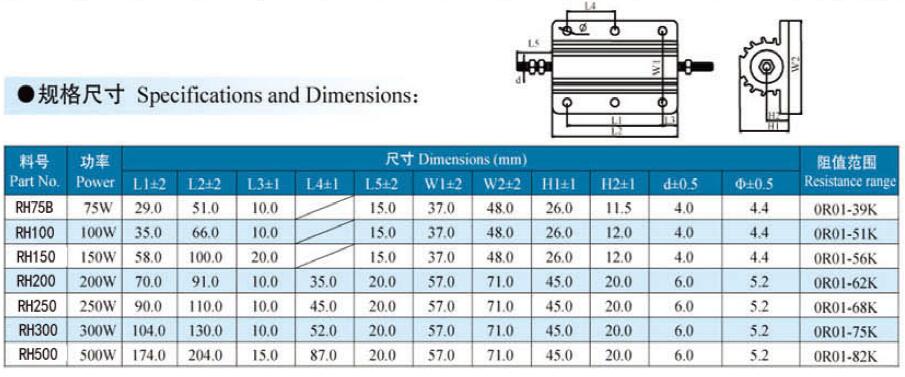

Dimesions:

Please download specification of Gold Aluminum Housed Resistors for more details.

PDF Specification Download
