Tubular Power Wirewound Resistors(RXG20)

Tubular Power Wirewound Resistors

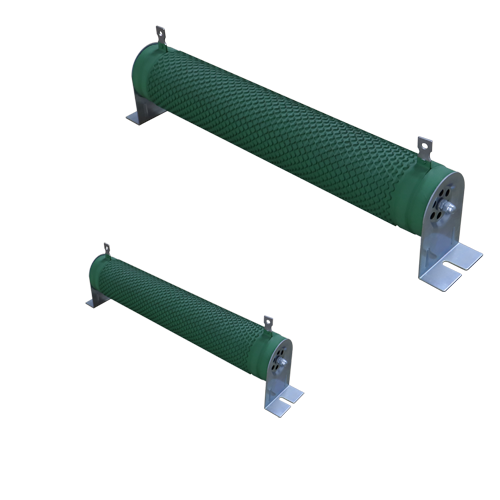

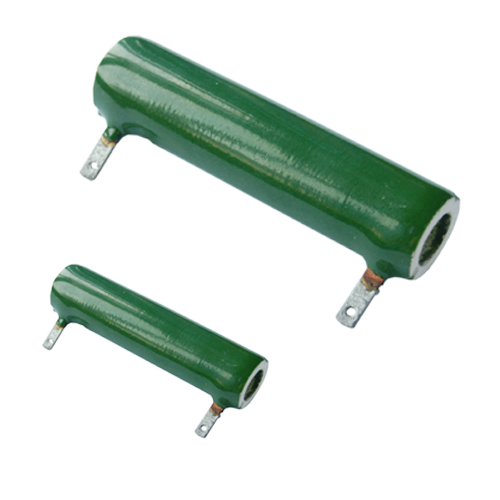

2 types winding methods with 2 terminals on caramic tubular, flat winding and wave winding. Flat winding for middle and high resistance values, wave winding middle and low values. By using special silicone and glaze coating to improve heatsink capacity and working time, glaze coating resistors can be used in extremly bad working environment.

Features

1. Rated power range: 50W-10000W

2. Operating voltage range: <1.2kV

3. Rated resistance range: 1R-10KR

4. Resistance tolerance: ±2%, ±5%, ±10%

5. Dielectric strength: AC3KV 50Hz/5s

6. Fixed, tapped styles, or adjustable type are available

7. Special terminals are available for unusual applications

Applications:

1. Load test

2. Equipment discharge

3. Automated control and inverter's energy loss brake.

Please download specification of Ceramic wirewound resistors for more details.

PDF Specification download
