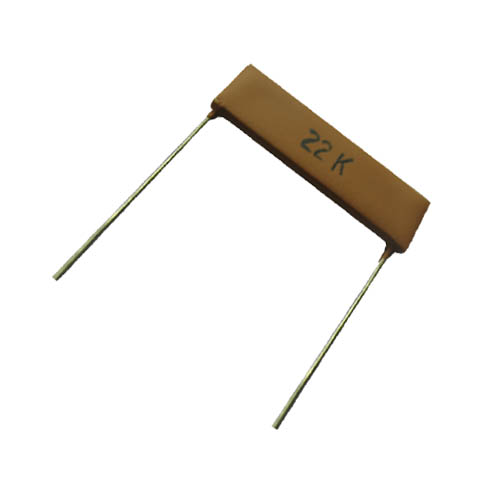

Flat High Voltage Resistors

Thick film resistive element
Non-Inductive
Serpentine resistive pattern
Product description: Flat High Voltage Resistors, by using thick film resistive element and serpentine resistive pattern design, ideal for high frequency and voltage applications.
INQUIRY

Flat High Voltage Resistors FVR series, which uses metal glaze film resistive element and serpentine pattern design which provides ideal cost efficient, stability, precision, non-Inductive, and high voltage characteristics for a wide range of measurement, voltage divider circuits, and control functions in high voltage power electronics applications.

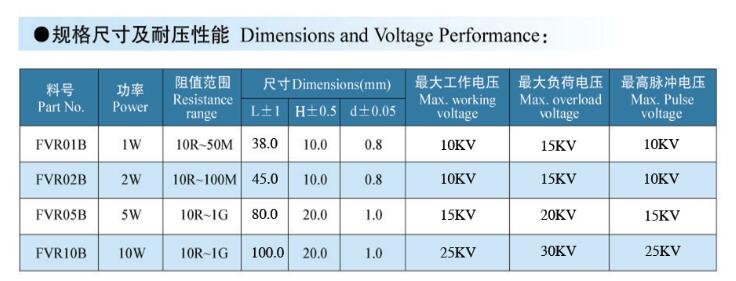

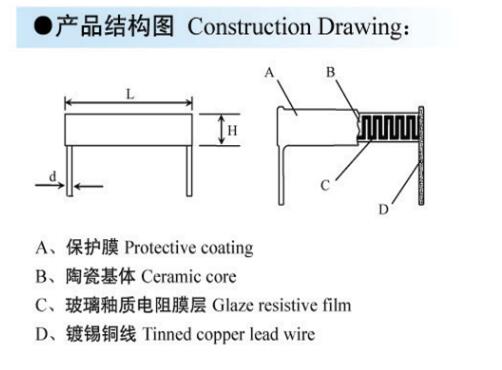

Dimensions:

Features :

Resistance Tolerance F(±1%), G(±2%), J(±5%), K(±10%), and M(±20%).
Stable cermet resistive element bonded to a high-purity alumina substrate.
Rated Wattage from 0.1W to 30W, Max Working Voltage from 2KV to 30KV.
Temperature Coefficient: 200 ppm/°C to 300 ppm/°C. Resistance Range: 10MΩ to 100GΩ.
Designs built from customer supplied schematics, Tough epoxy-based coating and high voltage stability

Applications :

Energy research, and EMI/lightning supression,
X-ray/imaging equipment, Capacitor crowbar circuits,
Impulse voltage generators, Pulse modulators, Radar Pulse-forming networks,
Applications include power supplies, High voltage snubber circuits, Arc furnace damping,
Transformers and any application requiring operation within an environment where high voltages are used.
