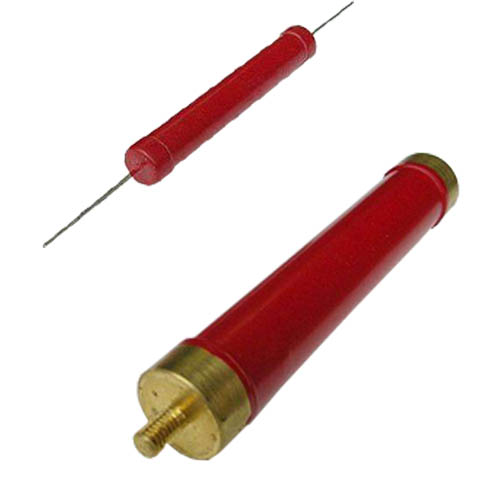

High Voltage Glaze Resistor

High Voltage Glaze Resistors

Thick film(metal glaze) resistive element

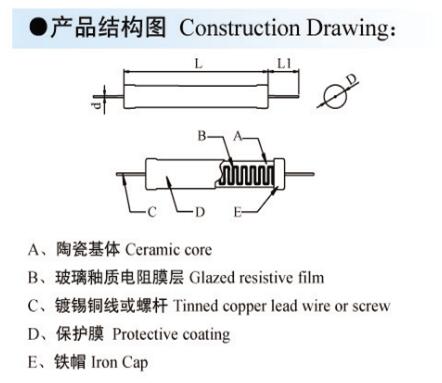

Serpentine pattern design
Customized length and coating
Product description: High voltage glaze resistors, thick film design for high voltage systems application, max rated power up to 200W, max working voltage up to 80KV.
INQUIRY

High voltage glaze resistors HVR Series, by using thick film resistive element and Serpentine Pattern design which provides ideal cost efficient, stability, precision and high voltage characteristics for a wide range of measurement, voltage divider circuits, and control functions in high voltage power electronics applications.

Features :

Rated Wattage from 1W to 200W. Max Working Voltage from 10KV to 80KV.
High Resistance Range from 1 Megohm to 1,000 Megohms.
Temperature Coefficient: 200 ppm/°C to 400 ppm/°C.
Resistance Tolerance G( ±2%), J(±5%), K(±10%).

Applications :

Impulse voltage generators, Arc furnace damping, Energy research, Pulse modulators, Radar Pulse-forming networks.
Capacitor crowbar circuits, High voltage snubber circuits, X-ray/imaging equipment, and EMI/lightning supression.

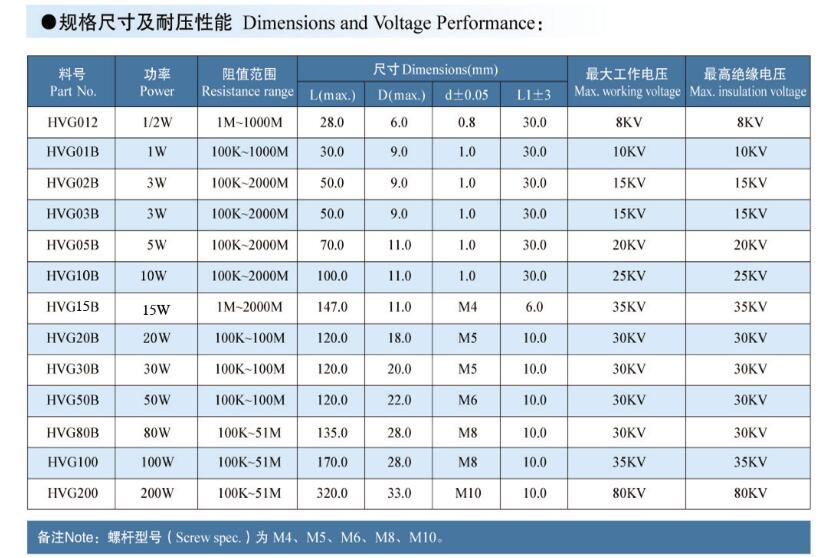

Dimesions:
