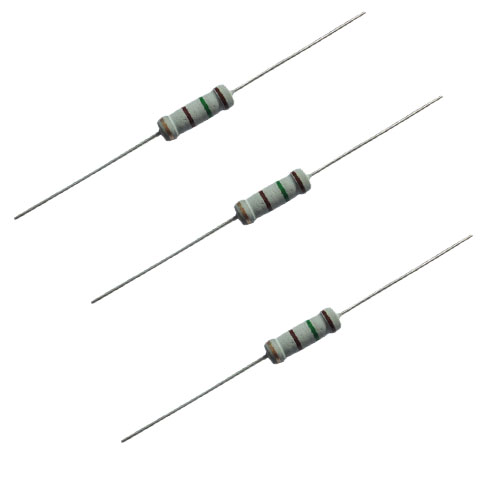

Metal Oxide Film Resistors

Stable in high temperature working enviroment
Tolerances: G (±2%), J (±5%)
Resistance Range: 0R1 to 1M
Rated power: 0.5W to 10W
Product description: Metal Oxide Film Resistors, also called metal oxide resistors.
INQUIRY

Metal Oxide Film Resistors, manufactured by depositing a homogeneous oxide film of metal alloy onto a high-grade ceramic body, the metal oxide film resistors are coated with a nonflammable lacquer providing mechanical, electrical and climatic protection.

Features :

Lead (Pb)-free and RoHS compliant
Operating temperature range: -55°C~200°C
Axial leaded type, high power at compact sizes.
Replace carbon composition components in some applications
Tolerances: G (±2%), J (±5%), Power wattages up to 10W at + 25 °C.

Coating Colors: Gray, Green, Pink. Customized coating colors are available.

Applications :

Ballasts, Amplifiers, Telecommunications, Household appliances.
Automotive, Power supplies, Computer, Instrumentation.

Specification download
