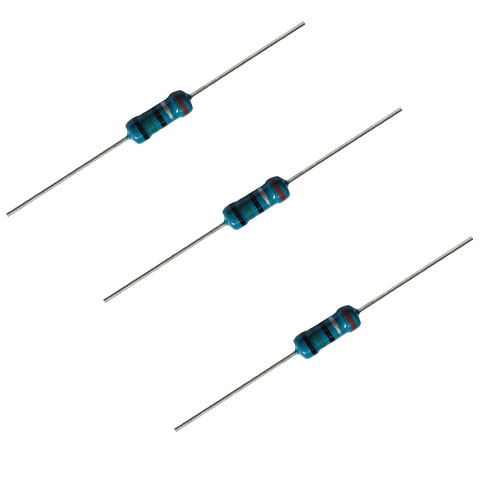

Metal Film Resistor
Metal Film Resistor
- High Precision, Resistance tolerace: ±0.1%, ±0.25%, ±0.5%, ±1%
- Low temperature coefficient of resistance: ±15-100ppm/°C
- RoHS compliant with 100% lead free
- Low electrical noise

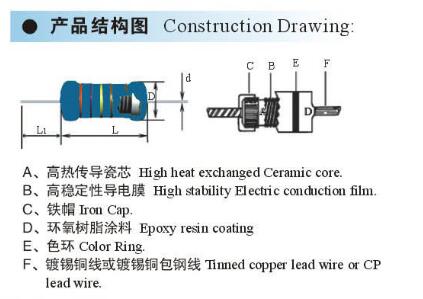

- Product description: Metal Film Resistor, two leads are welded on high alumina metal film rod, automatical carving machine adjusts the resistance values, and then resistor body will be coated with epoxy and color ring.
Metal Film Resistors, two leads are welded on high alumina metal film rod, automatical carving machine adjusts the resistance values, and then resistor body will be coated with epoxy and color rings. Normally it is widely used in circuit for current sensing.
Features :
- RoHS compliant.
- Pure tin plating provides compatibility with lead (Pb)-free.
- Low cost, low noise, operating temperature range -55°C ~ 155°C
- Rated Power: 1/8W, 1/4W, 1/2W, 1W, 2W, 3W, 5W
- Resistance range: 0.1ohm ~ 1Mohm
- Precision tighted tolerance available in ±0.1%, ±0.25%, ±0.5%, ±1%
Application:
-
Telecom equipment
-
Ammeter
-
Test equipment

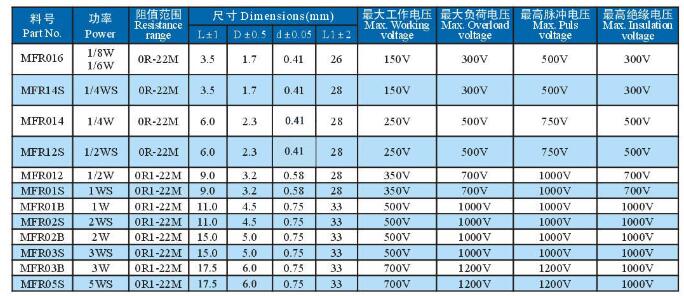

Dimesions:
Please download the PDF Specification for more details.
